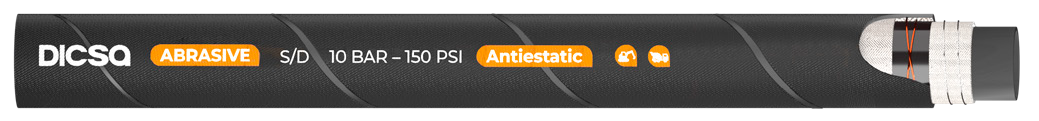

Suction 10 bar

For the transfer of sand and all types of abrasives in mining, construction and industry, for both dry and wet abrasives, gypsum or lime. High flexibility.

  • Inner tube: Black conductive NR rubber very resistant to abrasion
  • Reinforcement: High tenacity textiles and electrostatic copper braid
  • Exterior Cover: Special black rubber, antistatic, resistant to abrasion and atmospheric agents. Corrugated cover

*3:1 Safety Factor

Connections _ Industrial hoses and fittings _ Industrial hoses _ DICSA Industrial hoses _ Abrasive hoses - Suction 10 bar (producto)

CODE ø in (mm) ø out (mm) working pressure (bar) working pressure (psi) weight (kg/m) length (m)
ABRA10SD3820 38 52 10 150 1.37 20
ABRA10SD5120 51 67 10 150 2,02 20
ABRA10SD7620 76 92 10 150 3,03 20
ABRA10SD8020 80 96 10 150 3,21 20
ABRA10SD9020 90 107 10 150 3,83 20
ABRA10SD10220 102 120 10 150 5,00 20
ABRA10SD10240 102 120 10 150 5,00 40
ABRA10SD12720 127 150 10 150 7,25 20
ABRA10SD15220 152 175 10 150 8,93 20
